BTECH GMRS-RPT50 50W GMRS Repeater with Duplexer and Auto-ID


  • Sale
  • Regular price $1,499.89



FCC approved for GMRS! FCC ID: 2AGNDGMRSRPT50
  • Plug-and-Play Convenience: Comes equipped with an advanced smart duplexer, pre-configured for all 8 GMRS repeater pairs, enabling instant setup and use.
  • User-Friendly Operation: Offers an intuitive interface for hassle-free on-the-spot programming, including channel selection and tone adjustments.
  • Versatile Power Options: Compatible with both AC 120V and DC 13.8V power sources, with all necessary connections provided, ensuring continuous operation in any setting.
  • Innovative Auto Identification: Features a built-in auto IDer using MCW Morse code, customizable for automatic identification at predetermined intervals or in response to repeater activity.
  • Expandability: Designed with modular external access for easy future upgrades and expansions, tailored to evolving user needs and feedback.

Elevate your communication capabilities with the BTECH GMRS-RPT50, the epitome of innovation and practicality in GMRS repeater technology. Whether coordinating operations on a sprawling farm, operating a recreational GMRS repeater, or managing your private GMRS repeater, the GMRS-RPT50 is your gateway to reliable, extended-range communication.

Ideal Usage Scenarios:
  • Family Agricultural Operations: Streamline communication across extensive farming landscapes, from coordinating fieldwork to managing livestock, ensuring seamless operation and enhanced productivity.
  • Recreational Areas: Enjoy safety and coordination in recreational areas, ski resorts, and outdoor adventure sites, providing clear communication for your area GMRS users.
  • Personal GMRS Management: Facilitate a private GMRS repeater for your family or private network of GMRS users.
  • Neighborhood Networks: Build a cohesive GMRS community communication system in residential areas, fostering connectivity and readiness for collective local needs.
With its FCC certification and powerful 50W output, the GMRS-RPT50 promises exceptional range, compliance, and peace of mind. Pair it with the Nagoya NMO-HDG base antenna for a comprehensive, ready-to-deploy communication solution, bridging distances and connecting people when it matters most.



Transmitter Specifications

Feature Specification
Frequency range GMRS
Channel spacing 12.5 kHz / 25 kHz
Frequency stability (°C) +/- 1.5 ppm (XIR M8260)
+/- 0.5 ppm (XIR M8268)
RF output 25 - 50W
Modulation limit +/- 2.5 @ 12.5kHz
+/- 5.0 @ 25kHz
FM hum and noise -40 @ 12.5kHz
-45 @ 25kHz
Conducted/radiated emission -36 dBm < 1GHz
-30 dBm > 1GHz
Adjacent channel power -60 dB @ 12.5kHz
-70 dB @ 25kHz
Audio response +1, -3 dB
Audio distortion 3%
FM modulation 12.5kHz: 11K0F3E
25kHz: 16K0F3E



Receiver Specifications

Feature Specification
Frequency range GMRS
Channel spacing 12.5 kHz / 25 kHz
Frequency stability (°C) +/- 0.5 ppm
Analog sensitivity 0.25 uV (12 dB SINAD)
0.35 uV (20 dB SINAD)
Intermodulation (TIA603C ETS) 75 dB
70 dB
Adjacent channel selectivity 60 dB @ 12.5 kHz
70 dB @ 25 kHz
Spurious rejection (TIA603C ETS) 75 dB
70 dB
Audio distortion @ rated audio 3%(Typical)
Hum & noise -40 dB @ 12.5 kHz
-45 dB @ 25 kHz
Audio response +1, -3 dB
Conducted spurious emission -57 dBm



General Specifications

Feature Specification
Product Analog Repeater
Model GMRS-RPT50
Frequency UHF
Zone capacity 16
Channel capacity per zone 16
Typical RF output 50W
Frequency range GMRS
Dimensions (HxWxD) 88 x 483 x 366mm
3.46 x 19.02 x 14.41 inches
Voltage demand 100-240 VAC (13.6 VDC)
Weight 11kg (w/o antenna)
24.25lb (w/o antenna)
Current consumption:
– Standby 1.0A (100 VAC), 0.5A (240 VAC)
– Transmitting 4.0A (100 VAC), 1.8A (240 VAC)
Working temperature -30 to +60 °C


-22 to +140 °F

Max work cycle 100%



In the Box

  • GMRS-RPT50
  • Mounting Brackets/Hardware
  • Speaker Mic
  • Power Cable Connections (AC + DC)
  • USB Programming Cable



Resources

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
D
Dwayne

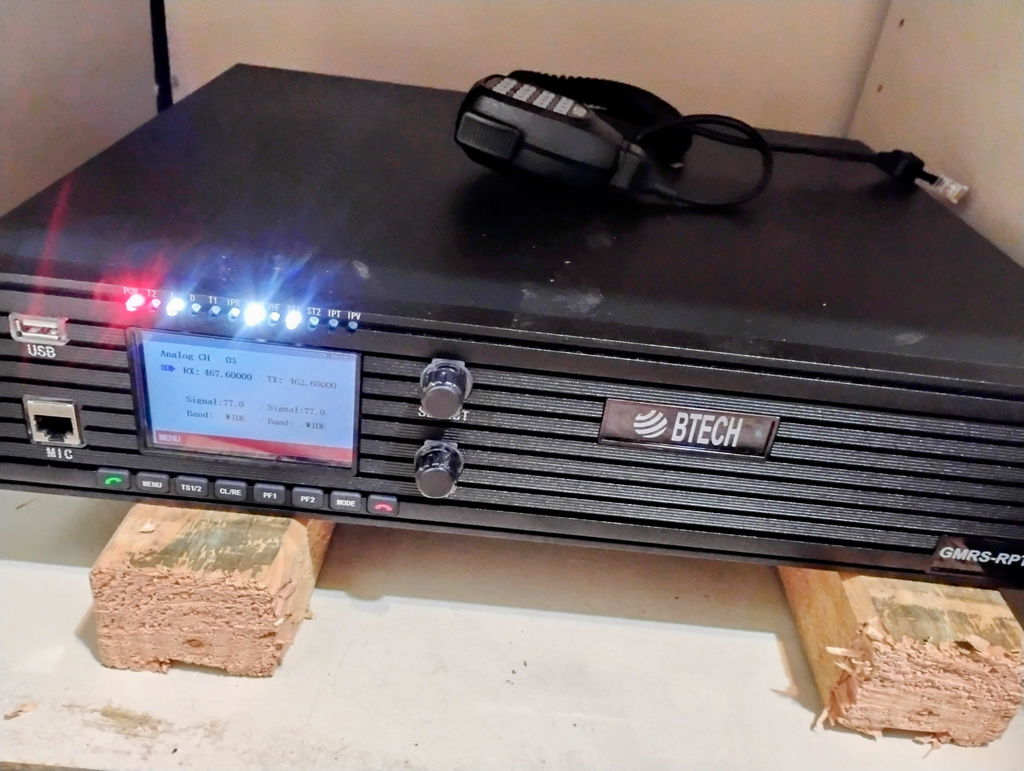

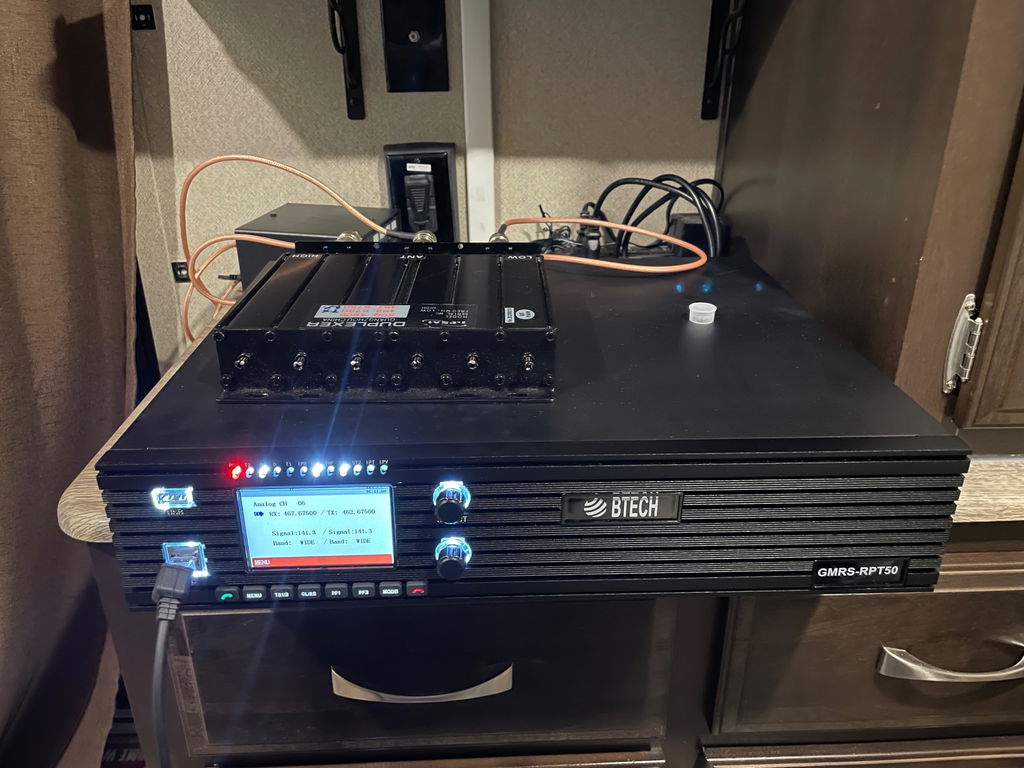

Easy programming and setup, very good quality RX and TX using internal duplexer.

A
Anonymous
Works great - 4 stars until firmware update

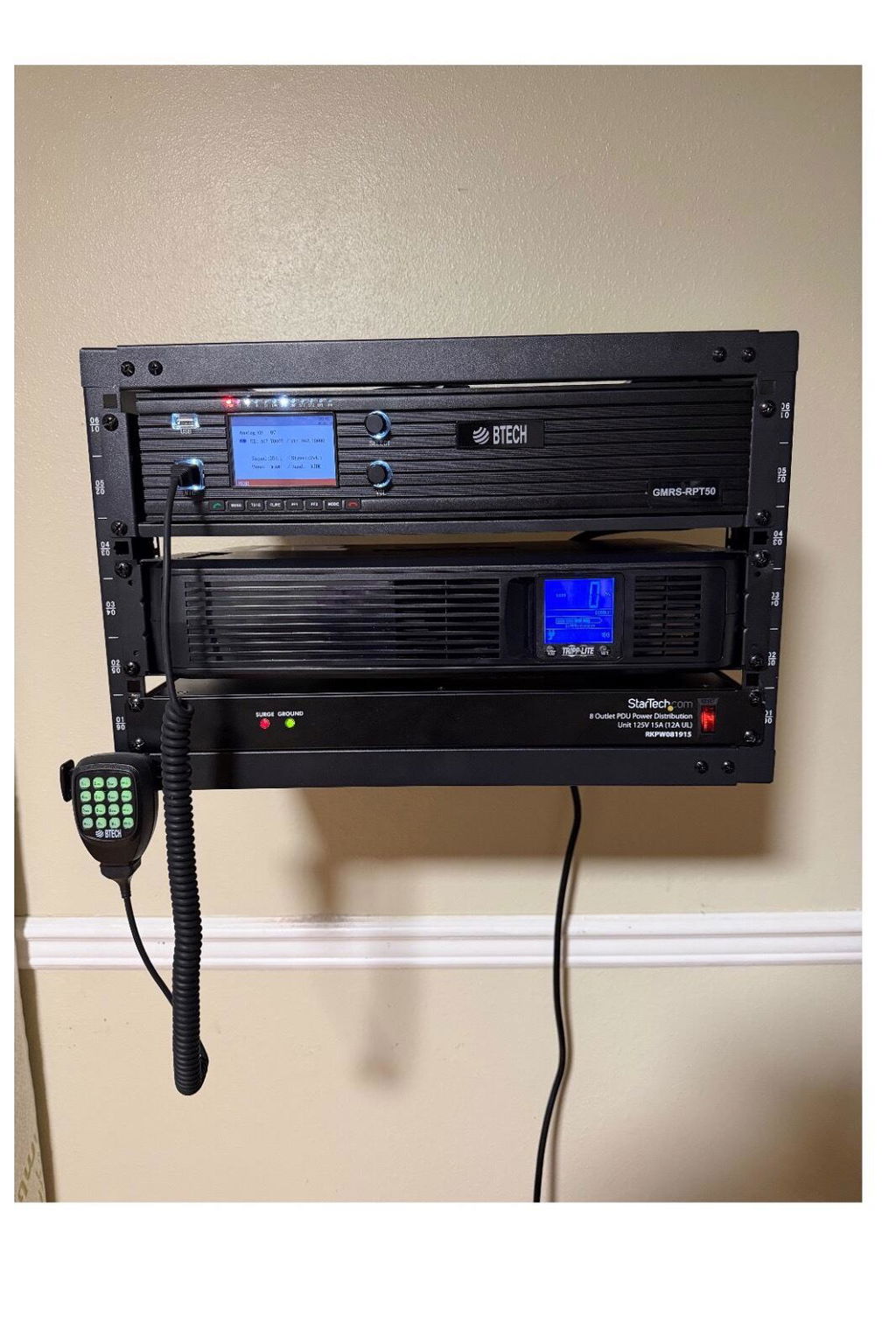

Solid frame, rack mountable, can handle long conversations and is easy to program from the device without the software.

I'm waiting for the networking and device ports to be enabled in the future to truly make this thing useful, but for now it's been doing great for in-town comms.

4 stars until update, but I haven't had any issues. Software could use a little help, but works for its intent.
